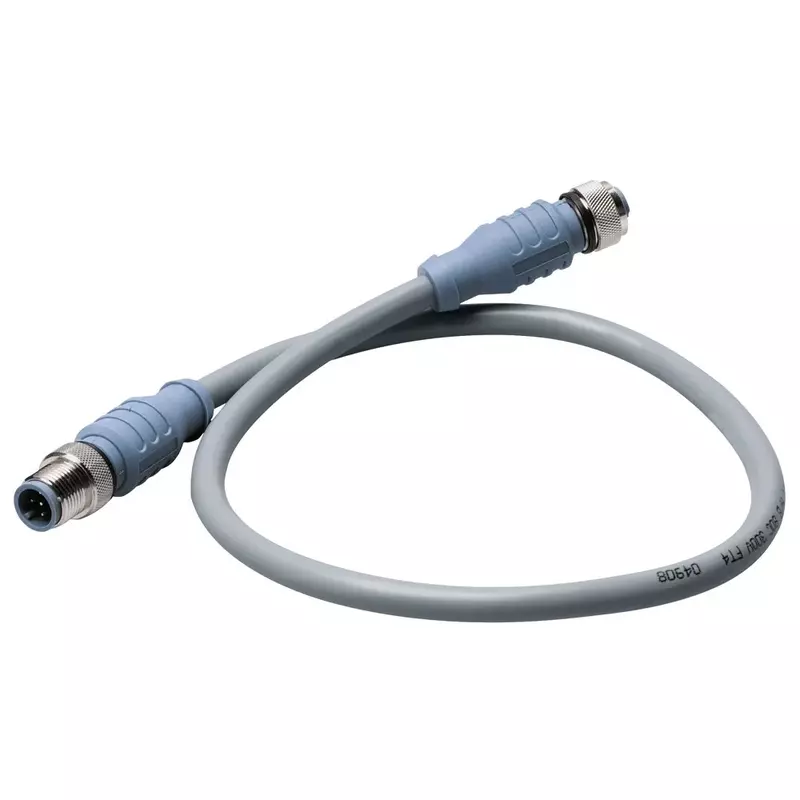

Maretron Mid Double-Ended Cordset - 2 Meter - Gray
Customize
Maretron Mid Double-Ended Cordset - 2 M Gray Mechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59" Electrical Current Rating: 4.0 Amps Voltage Rating: 250 V Cable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: PE (data pair), PVC (power pair) Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair) ENVIRONMENTAL Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F) APPROVALS (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approved IEC: IEC 61162-3. Features: Voltage rating 250 V, 4.0 amps maximum. Rugged, IP68 rated connectors for continued connection integrity in marine environments. One male 5-pin NMEA2000 mid connection, one female 5-pin NMEA2000 mid connection. Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.
- Voltage rating 250 V, 4.0 amps maximum
- Ship to United States Only
- Rugged, IP68 rated connectors for continued connection integrity in marine environments
- one male 5 pin NMEA2000 mid connection
- one female 5 pin NMEA2000 mid connection
- Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and they are waterproof for continued operation even while submerged in the bilge.
- 2.0 meter, gray
Specifications:
| Materials & Construction | |
| Color | Gray |
| Material | Brass, Polyvinyl Chloride |
| Product Details | |
| Connector Gender | Male-to-Female |
| Input Current | 4 Amps |
| Is Discontinued By Manufacturer | No |
| Item Package Quantity | 1 |
| Voltage | 250 Volts |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 9 inches |
| Product Dimensions | 9 x 7 x 1 inches |
| Size | 2 m |
| Weight | 8 ounces |
| Width | 7 inches |
| Technical Specifications | |
| Input Current | 4 Amps |
| Voltage | 250 Volts |
