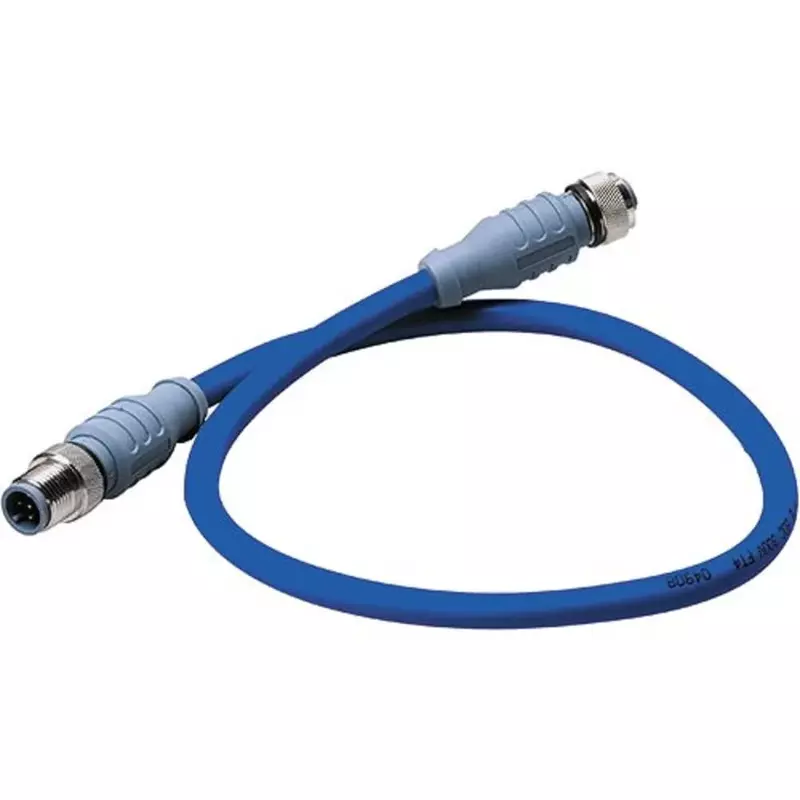

Maretron DM-DB1-DF-06.0 Mid Double Ended Cordset, 6 m, Blue

Maretron Mid Double-Ended Cordset - 6 M Blue. Mechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59". Electrical: Current Rating: 4.0 Amps; Voltage Rating: 250 V. Cable: Outer Jacket Mat/Color: PVC/Gray; Conductor Insulation Material: PE (data pair), PVC (power pair); Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire; Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair). Environmental: Protection Class: IEC IP68, NEMA 1,3,4,6P; Temperature Rating: -40 °C to 80 °C (-40 °F to 176 °F). Approvals (Cable): UL PLTC 75 °C Sunlight Resistant E90625, AWM 80 °C 300V; CSA CMX-OUTDOOR-CMG LL54185 75 °C, AWM I/II A/B 80 °C 300V FT4; NMEA: NMEA 2000 Approved; IEC: IEC 61162-3. Features: Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of micro cable. Used with LED-attachable connectors to build exact length cables at the job site. Meets and exceeds NMEA 2000 specifications for the highest reliability.

• Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of micro cable
• Used with led-attachable connectors to build exact length cables at the job site
• Meets and exceeds NMEA 2000 specifications for the highest reliability
