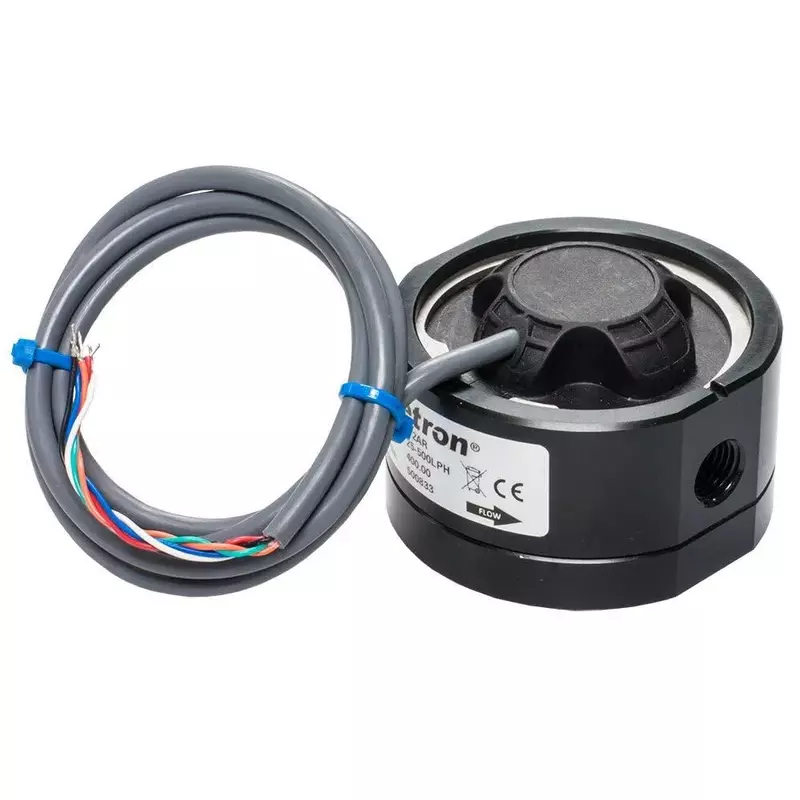

Maretron Fuel Flow Sensor - 25-500 LPH/6.6-132 GPH
MARETRON M2AR fuel flow sensor for marine applications; measures 25–500 LPH (6.6–132 GPH) with ±1.5% accuracy. Plastic body, surface-mount, 1/4" NPT port, 1 m cable, operating temp -40°C to 80°C.
$595.00 $595.00
Customize
Available Quantity
6 Product Details
Fuel Flow Sensor - 25-500 LPH/6.6-132 GPH Features: Operating Temperature: -40°C to 80°C (-40°F to 176°F) Storage Temperature: -65°C to 170°C (-85°F to 338°F) Port Size: 1/4" NPT Female Cable Length: 1M (3.28 ft) Maximum Viscosity: 1000 cPs Pressure: 68.95 Bar (1000 PSI) Strainer Size: 200 Mesh (If not already installed after fuel filter) WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov . Additional marketing/specifications from marketplace: Product Type - ELECTRONIC SENSOR. Item Package Quantity - 1. Item Package Weight - 1.40 Pounds. Item Package Dimension: 6.00L x 4.000W x 4.000H inches. Great Product.
- Product Type - ELECTRONIC SENSOR
- Item Package Quantity - 1
- Item Package Weight - 1.40 Pounds
- Item Package Dimension: 6.00L x 4.000W x 4.000H inches
- Great Product
Specifications:
| Materials & Construction | |
| Color | Beige |
| Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Measurement Accuracy | ±1.5% |
| Measuring Range | 25LPH to 500LPH |
| Model Name | M2AR |
| Mounting Type | Surface Mount |
| Output Type | Push-Pull |
| Specific Uses For Product | marine applications |
| Style | Modern |
| Upper Temperature Rating | 4E+2 Degrees Fahrenheit |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 6 inches |
| Product Dimensions | 6 x 4 x 4 inches |
| Size | One Size |
| Weight | 3 pounds |
| Width | 4 inches |
| Technical Specifications | |
| Item dimensions L x W x H | 6 x 4 x 4 inches |
| Item Package Dimensions L x W x H | 6 x 4 x 4 inches |
| Measurement Accuracy | ±1.5% |
| Mounting Type | Surface Mount |
| Output Type | Push-Pull |
| Upper Temperature Rating | 4E+2 Degrees Fahrenheit |
