Lenco 9" x 12" Standard Trim Tab Kit w/Standard Integrated Switch Kit 12V
Customize

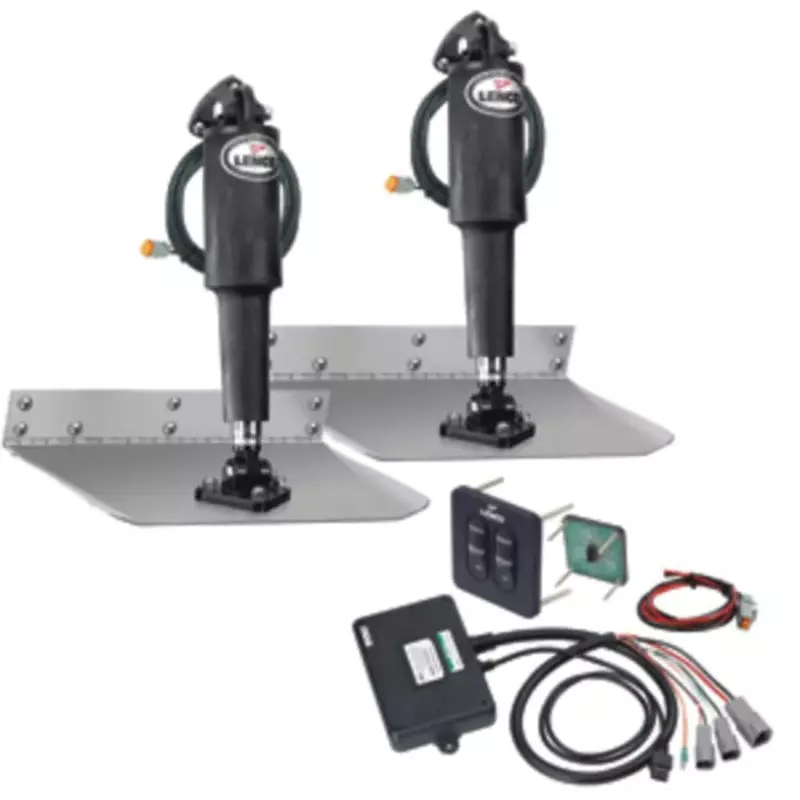

9" x 12" Standard Trim Tab Kit w/Standard Integrated Switch Kit- 12V Lenco Electric Complete Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Standard Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts. Lenco Trim Tab Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches. Kit includes: Self-contained sealed keypad Control box 36" Pigtail. Features include (2) upper mounting brackets with gland seals; actuator extension wiring harnesses (20'); actuators with Deutsch connectors; 12-gauge electro-polished stainless steel blades; and a switch kit (double rocker, standard or LED indicator). Product is CE Certified. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- (2) 15085-001 upper mounting brackets with Gland seal
- (2) 30133-103 actuator extension wiring harnesses - 20' (6.1 M) Length
- (2) 15054-001 actuators with 6' (1.8 M) leads and Deutsch connectors
- (2) 12-gauge stainless steel electro-polished Blades
- (1) Switch Kit - choose double rocker, Standard or LED indicator
Specifications:
| Materials & Construction | |
| Color | 06 Ambre |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Actuator Type | Rocker |
| Circuit Type | 1-way |
| Color | 06 Ambre |
| Connectivity Protocol | X-10 |
| Connector Type | Quick Connect |
| Contact Material | Stainless Steel |
| Contact Type | Normally Open |
| Control Method | Touch |
| Country of Origin | USA |
| Global Trade Identification Number | 00874847000154 |
| Insulation Resistance | 100 Megaohms |
| International Protection Rating | IP54 |
| Number of Items | 1 |
| Number of Positions | 2 |
| Operating Voltage | 12 Volts (DC) |
| Operation Mode | ON-OFF |
| Terminal | Marine |
| Unit Count | 1.0 Count |
| UPC | 874847000154 |
| Voltage | 12 Volts |
| Wattage | 5E+2 |
| Sizing & Dimensions | |
| Height | 12.7 inches |
| Length | 12.7 inches |
| Product Dimensions | 12.7 x 5 x 12.7 inches |
| Weight | 17 pounds |
| Width | 5 inches |
| Technical Specifications | |
| Insulation Resistance | 100 Megaohms |
| International Protection Rating | IP54 |
| Operating Voltage | 12 Volts (DC) |
| Wattage | 5E+2 |
