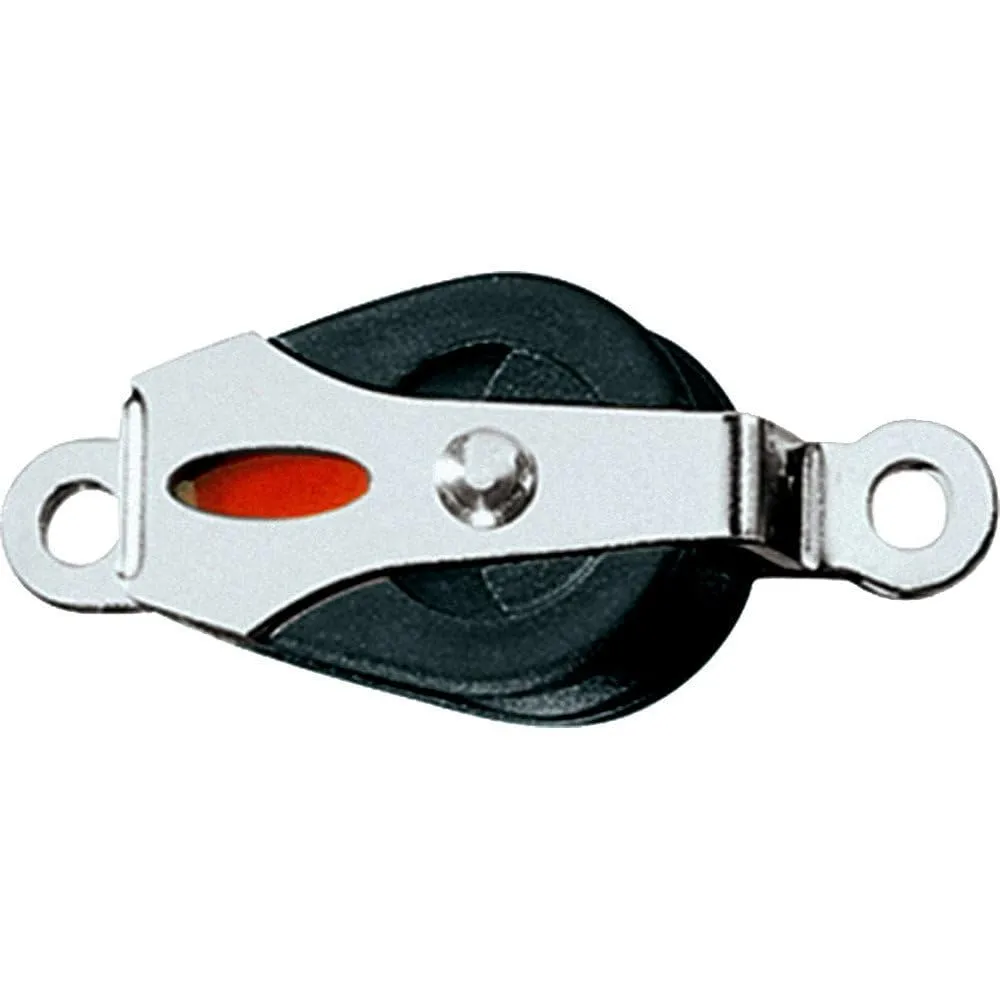

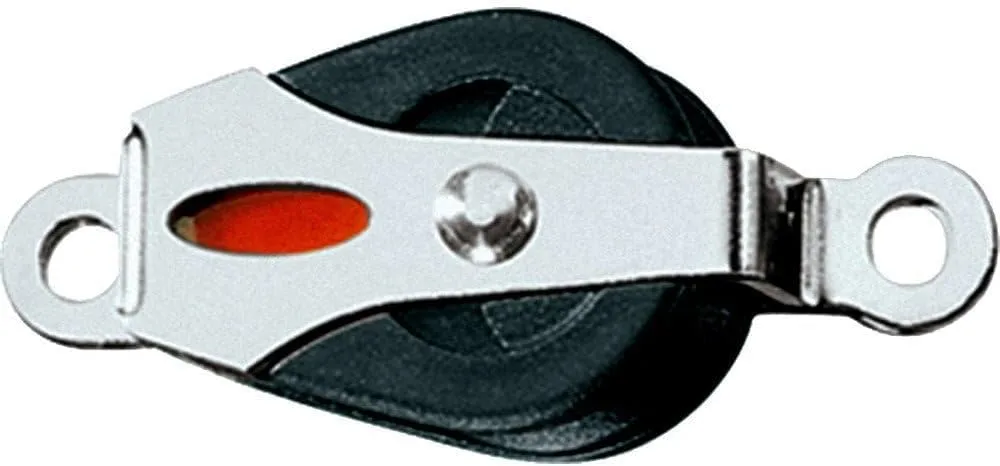

Series 20 Ball Bearing Block - Single - Cheek Rivet Mount. Features: Low friction; High static and dynamic load capacity; Lightweight; Suitable for screw or pop rivet mounting. Precision molded acetal sheaves running on stainless steel or Torlon ball bearings provide high performance & low friction. Applications: Dinghy control lines; Dinghy Vangs; Cunninghams; Traveller controls. Materials: U.V. Stabilized Acetal sheaves; Stainless steel ball bearings; Grade 316 stainless steel load strap and head fitting; Impact and UV resistant, fiber reinforced Nylon cheeks. Specifications include sheave diameter 20 mm (3/4"), maximum rope diameter 6 mm (1/4"), M.W.L. 200 kg (440 lbs), B.L. 550 kg (1,210 lbs). Lightweight design with compact footprint makes it ideal for small sailboat control systems.
| Materials & Construction | |
| Material | U.V. Stabilized Acetal, Stainless Steel, Nylon |
| Outer Material | Polyester |
| Product Details | |
| Is Discontinued By Manufacturer | No |
| Item model number | 55136 |
| Other display features | Wireless |
| Sizing & Dimensions | |
| Height | 1 inches |
| Item dimensions L x W x H | 3 x 2 x 1 inches |
| Length | 3 inches |
| Product Dimensions | 3 x 2 x 1 inches |
| Weight | 0.01 ounces |
| Width | 2 inches |
| Technical Specifications | |
| Bearing Type | Ball Bearing |
| Compatible Lubricant | Grease |
