Lenco LED Indicator Two-Piece Tactile Switch Kit w/Pigtail f/Single Actuator Systems Electronic Switch
Customize

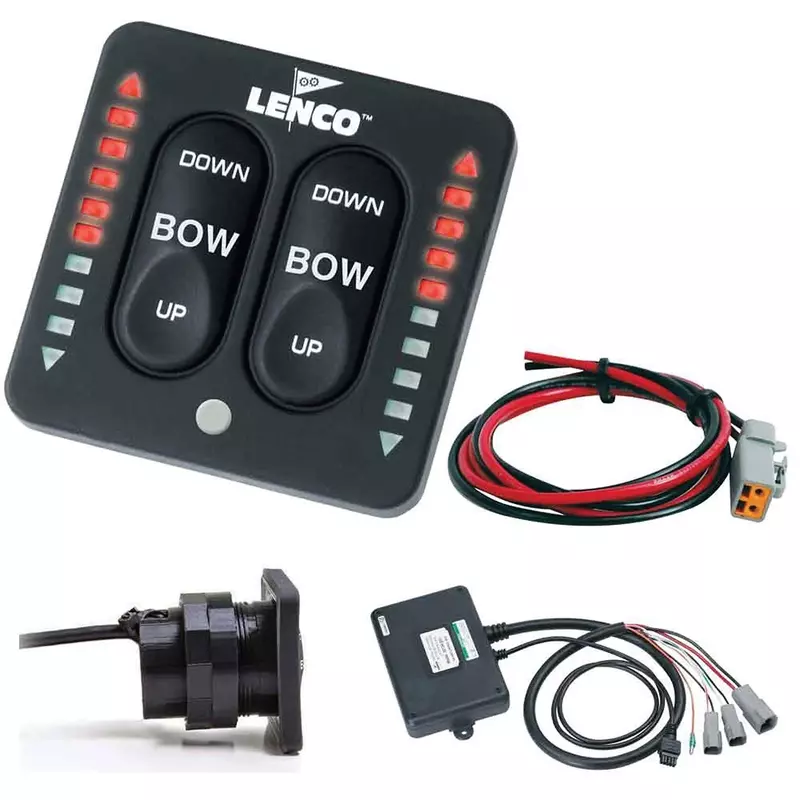

LED Indicator Two-Piece Tactile Switch Kit with Pigtail for Single Actuator Systems. This LED tactile switch kit has a shortened bezel for consoles which require less depth to mount. Functionality is built into the externally mounted control box and must be mounted separately. LED indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions. Features include simple, quick, Plug & Play installation; instant response; built-in retractor; low profile design; self-contained, sealed key pad & solid state control box with waterproof Plug & Play Deutsch connectors; 36" power pigtail for control box; 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75"; 2.33" clearance required from the back of the key pad's mounting location; 2 high-intensity LED indicator displays; Photo Eye for optimum viewing; Backlit key pad; Self-Check feature. 3 Year Warranty. System Type: Single Actuator. Compliance: CE Certified. Great Product.
- Great Product
Specifications:
| Materials & Construction | |
| Material | [Standard_conductive_material] |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 2-way |
| Connector Type | Clamp |
| Contact Material | [Standard_conductive_material] |
| Contact Type | Normally Open |
| Item model number | 15270-001 |
| Operating Voltage | 12 Volts (DC) |
| Operation Mode | Automatically |
| Terminal | Marine |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 10 inches |
| Product Dimensions | 10 x 7 x 4 inches |
| Weight | 1.57 pounds |
| Width | 7 inches |
