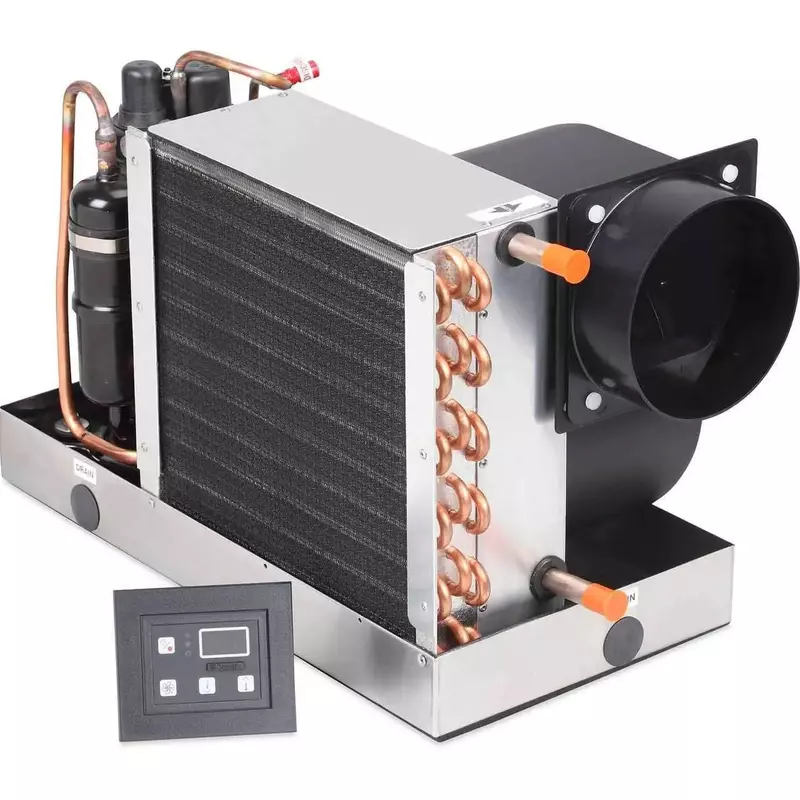

Dometic EnviroComfort ECD16K-HV AC Retrofit Kit - 115V - 16,000 BTU
Customize
EnviroComfort ECD16K-HV AC Retrofit Kit - 115V - 16,000 BTU The Dometic Marine Air 16,000 BTU EnviroComfort Air Conditioning Retrofit Kit provides reverse-cycle cooling and heating capability so you stay comfortable onboard year-round. This 16,000 BTU unit replaces an older self-contained air conditioner of comparable capacity in the 12,000 to 16,000 BTU range. All units have high-velocity blowers with internal motors for a more compact installation footprint. The blower can be rotated to a horizontal or vertical position for greater installation flexibility. Units are built on an easy-to-plumb stainless-steel drain pan, and the pre-installed return-air filter is removable for cleaning. ECD kits are ideal for replacing an existing air conditioning system or for a new air conditioning installation. The Retrofit Kit includes the ECD self-contained air conditioning unit and digital control with bezel and is intended to replace an older self-contained air conditioner of comparable capacity. Legacy Part Number - 207500316 Features: High-velocity, rotatable blower for horizontal or vertical installation Environmentally friendly R-410A refrigerant Easy to use Dometic Passport I/O digital control and display (P/N 9600005997) Plastic remote electrical box for convenience in mounting Stainless-steel drain pan Pre-installed return-air filter, easily removable and cleanable Small, compact, space-saving design Ecd16k-hv A/c Retroft Kit 410aEasy to Install, Easy to Use, Ideal for New or Retrofit Installations!These air conditioning systems can be used for new installations or to replace your existing air conditioning to provide cooling AND reverse cycle heating. They include the unit, digital control with LED display and mounting bezel. All units have high-velocity blowers with internal motors for a more compact installation footprint. Blowers can be mounted horizontally or vertically for installation flexibility. Units are built on a stainless steel drain pan, and the pre-installed return air filter is removable for cleaning.
- 207500316, DME207500316
Specifications:
| Materials & Construction | |
| Material | Stainless Steel |
| Product Details | |
| Capacity (Btu) | 16,000 Btu |
| Maximum Air Flow | 260 Cfm |
| Model Name | ECD16K-HV A/C RETROFT KIT 410A |
| Number of Items | 1 |
| Refrigerant Type | R410a |
| Sea Water Flow Rate | 5.3 Gpm |
| Voltage - Input Range (Volts) | 115v |
| Sizing & Dimensions | |
| Height | 15.3 inches |
| Length | 10.25 inches |
| Product Dimensions | 10.25 x 20 x 15.3 inches |
| Size | 16,000 BTU |
| Weight | 77 pounds |
| Width | 20 inches |
| Technical Specifications | |
| Sea Water Flow Rate | 5.3 Gpm |
| Starting amps | 62 A |
