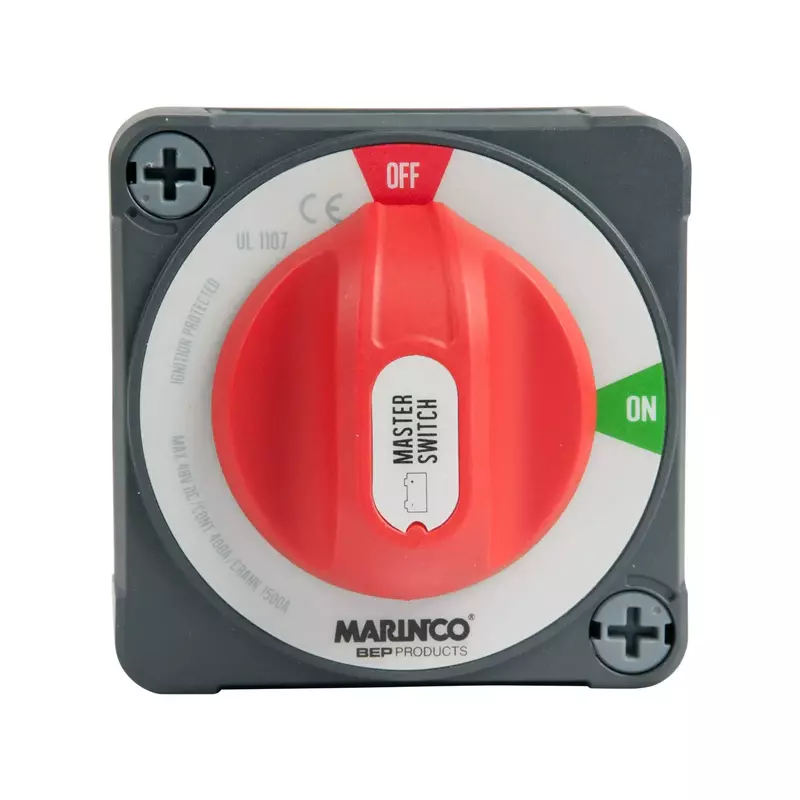

BEP Pro Installer 400A EZ-Mount On/Off Battery Switch - MC10
Customize
Pro Installer 400A EZ-Mount On/Off Battery Switch - MC10 As easy as 1, 2, 3, these revolutionary battery switches allow you to wire from the front. Never has installation been so easy and cabling so accessible. With their shared interconnection height, EZ-Mount battery switches "cluster" directly with the Pro Installer Busbar Range, resulting in the fastest, most compact installations. Optimized cable access makes installation a breeze. Pro Installer switches set the new benchmark with outstanding ergonomics, intuitive look/feel, and are engineered from the finest materials to withstand the harsh marine environment. The outstanding performance and features of this powerful new generation battery switch appeal to both the installer and end user. All ratings, footprints and features of the EZ-Mount switch match the high quality of our standard switches. Features: 400A Continuous / 600A 5 mins Intermittent / 1500A 10 secs Cranking Waterproof to IP66 Same interconnection height as Pro Installer Removable knob allows isolation during servicing 3 removable sideplates for protection Industry standard 3.85" x 3.85" footprint. As easy as 1, 2, 3, these revolutionary battery switches allow you to wire from the front. Never has installation been so easy and cabling so accessible. With their shared interconnection height, EZ-Mount battery switches "cluster" directly with the Pro Installer Busbar Range, resulting in the fastest, most compact installations. Optimized cable access makes installation a breeze. Pro Installer switches set the new benchmark with outstanding ergonomics, intuitive look/feel, and are engineered from the finest materials to withstand the harsh marine environment. The outstanding performance and features of this powerful new generation battery switch appeal to both the installer and end user.
- 400A Continuous / 600A 5 minutes Intermittent / 1500A 10 seconds Cranking
- Fiber reinforced plastics
- Stainless steel washers/nuts
- Tinned copper 10mm (3/8") studs
- Tested to UL1107 ignition protection, CE
Specifications:
| Materials & Construction | |
| Color | Black |
| Contact Material | Tinned Copper |
| Material | Tinned Copper |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Plug In |
| Contact Type | Normally Open |
| Control Method | Touch |
| Included Components | Great Product |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operation Mode | Off |
| Terminal | Spdt |
| Wattage | 19.2 KW |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 7 x 4 inches |
| Weight | 1.10 pounds |
| Width | 7 inches |
| Technical Specifications | |
| Current Rating | 400 Amps |
| International Protection Rating | CE |
| Operating Voltage | 48 Volts |
| Terminal | Spdt |
| Warranty | Warranty |
