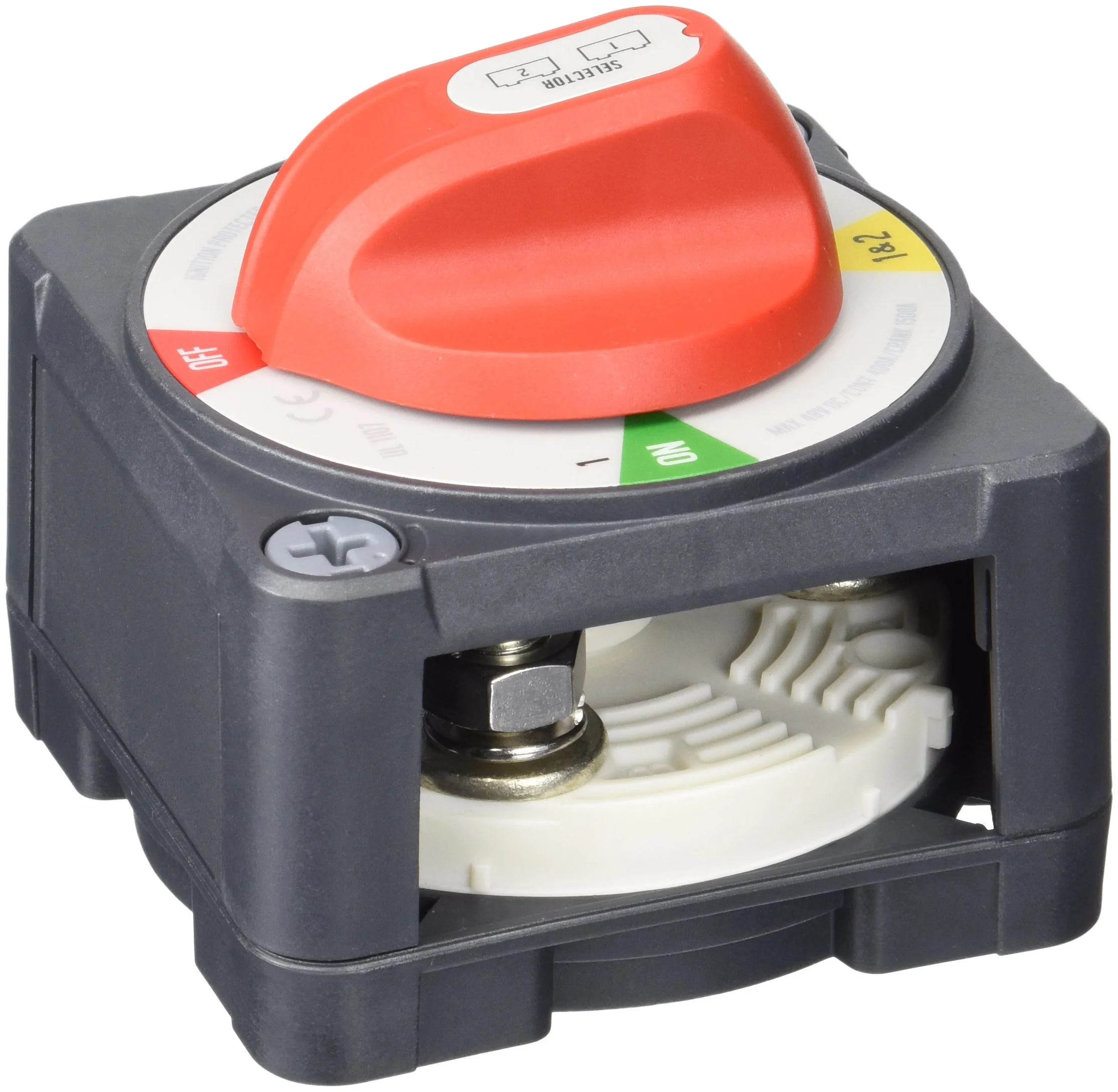

BEP 771-S-EZ Marinco Power Products Pro Installer 1-2-Both Off EZ-Mount Battery Selector Switch, Black Plastic
Customize
Pro Installer 400A EZ-Mount Battery Selector Switch (1-2-Both-Off) As easy as 1, 2, 3, these revolutionary battery switches allow you to wire from the front. Never has installation been so easy and cabling so accessible. With their shared interconnection height, EZ-Mount battery switches "cluster" directly with the Pro Installer Busbar Range, resulting in the fastest, most compact installations. Optimized cable access makes installation a breeze. Pro Installer switches set the new benchmark with outstanding ergonomics, intuitive look/feel, and are engineered from the finest materials to withstand the harsh marine environment. The outstanding performance and features of this powerful new generation battery switch appeal to both the installer and end user. All ratings, footprints and features of the EZ-Mount switch match the high quality of our standard switches. Tested to UL1107 ignition protection, CE Tinned copper 10mm (3/8") studs Stainless steel washers/nuts Fiber reinforced plastics 400A Continuous / 600A 5 mins Intermittent / 1500A 10 secs Cranking Waterproof to IP66 Same interconnection height as Pro Installer Removable knob allows isolation during servicing 3 removable sideplates for protection Industry standard 3.85" x 3.85" footprint
- 400A Continuous / 600A 5 minutes Intermittent / 1500A 10 seconds Cranking
- Fiber reinforced plastics
- Stainless steel washers/nuts
- Tinned copper 10mm (3/8") studs
- Tested to UL1107 ignition protection, CE
Specifications:
| Materials & Construction | |
| Color | Black |
| Hardware | Stainless steel washers/nuts |
| Material | Fiber reinforced plastic |
| Outer Material | Fiber reinforced plastic |
| Studs | Tinned copper 10mm (3/8") studs |
| Product Details | |
| Afd | No |
| Is Discontinued By Manufacturer | No |
| Lockable | No |
| Positions | 1-2-Both-Off |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 7 x 4 inches |
| Weight | 1.1 pounds |
| Width | 7 inches |
| Technical Specifications | |
| Actuator Type | Rotary |
| Circuit Type | 2-way |
| Connector Type | Crimp |
| Contact Type | Normally Open |
| Continuous Amperage | 400a |
| Current Rating | 400 Amps |
| Operating Voltage | 48 Volts (DC) |
| Operation Mode | ON-OFF |
| Rating | 400A Continuous / 600A 5 minutes Intermittent / 1500A 10 seconds Cranking |
| Terminal | Marine |
