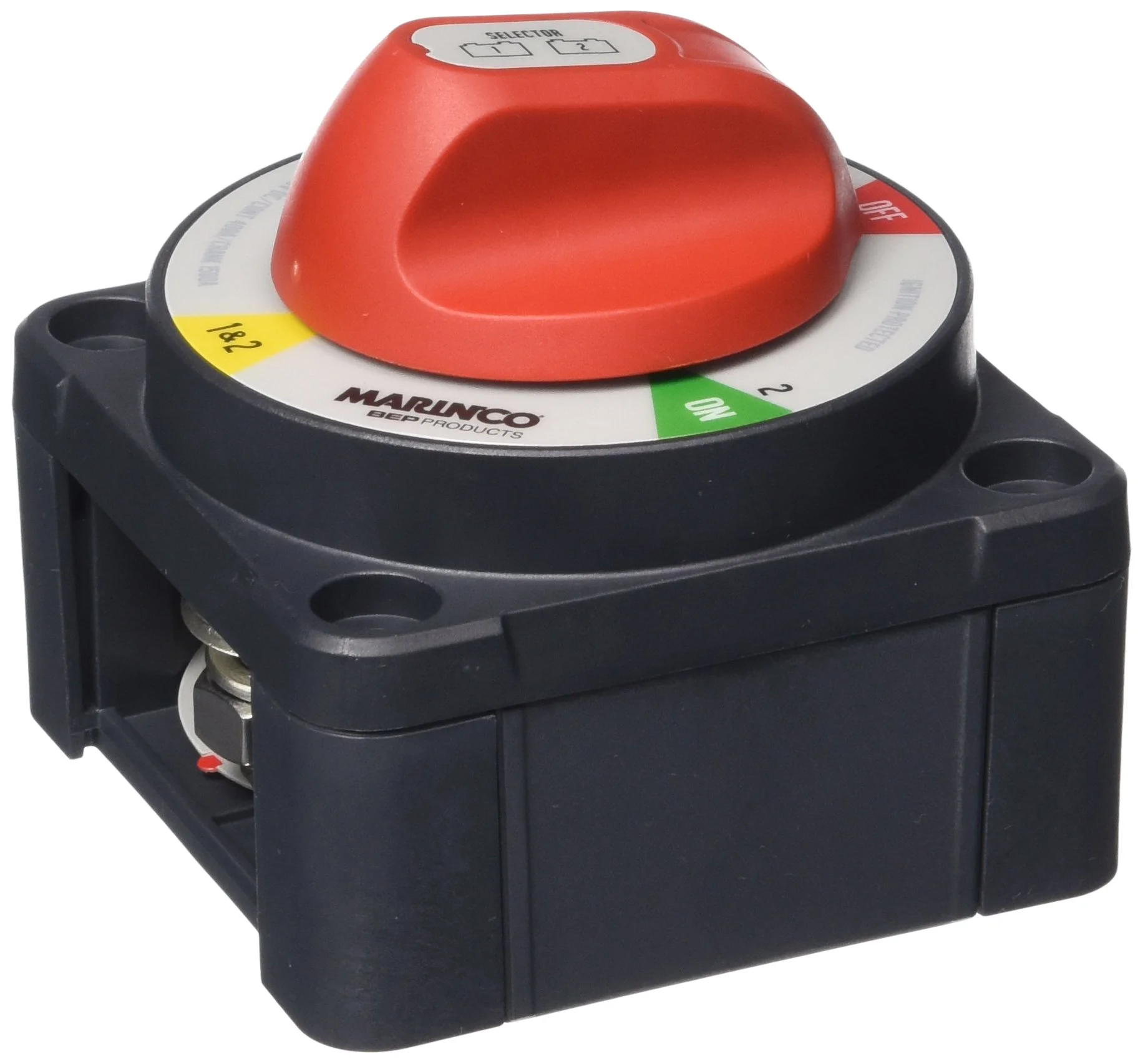

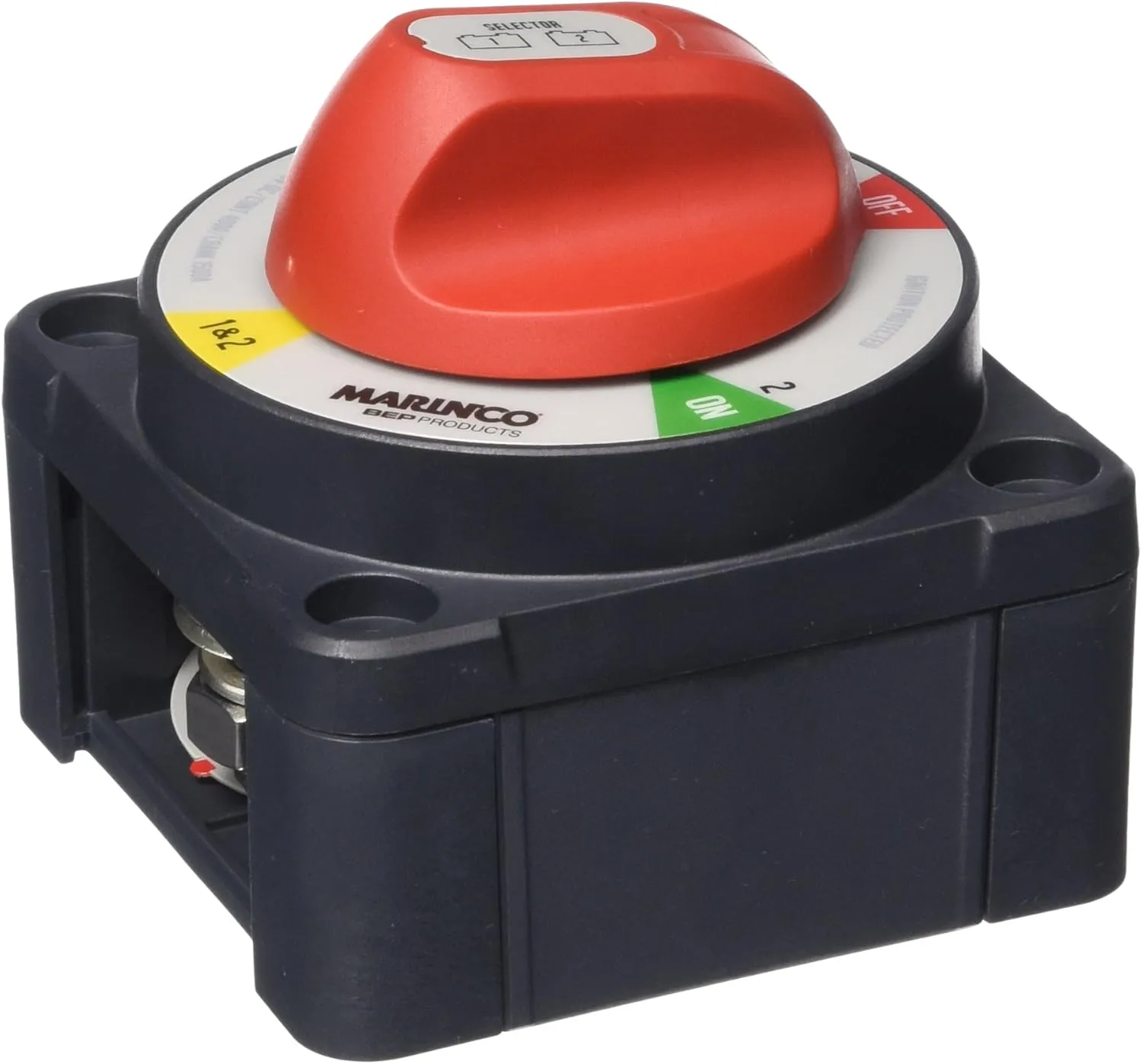

BEP Marinco Pro Installer 400A Selector Battery Switch - MC10
Customize
Pro Installer 400A Selector Battery Switch - MC10 Power requirements on boats have increased, and these 2 Selector switches offer high power capacity (400 amps continuous), the ability to easily fit doubled cables, and conform to the industry standard mounting footprint (Guest, Perko, Blue Sea). Please note selector switches will not separate electronics from harmful engine starting spikes. Specifications Mounting: Surface, Rear or Front Voltage: 48v DC (for 12-48v systems) Rating: 400 Cont / 600 Inter / 1500 Crank Dims: 3.85" x 3.85" x 3.62" Operation: 1-2-Both-Off Stud: 3x 10 mm (3.8") WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., AFD: No , Lockable: No , Positions: 1-2-Both-Off , Continuous Amperage: 400a. Features: 400A continuous / 600A intermittent / 1500A cranking; fiber reinforced plastics; stainless steel washers/nuts; tinned copper 10mm (3/8") studs; tested to UL1107 ignition protection, CE.
- 400A Continuous / 600A 5 minutes Intermittent / 1500A 10 seconds Cranking
- Fiber reinforced plastics
- Stainless steel washers/nuts
- Tinned copper 10mm (3/8") studs
- Tested to UL1107 ignition protection, CE
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Copper |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Connector Type | Stud |
| Connector Type (Terminal) | Stud |
| Contact Material | Copper |
| Contact Type | Normally Open |
| Control Method | Remote |
| Current Rating | 400 Amps |
| Included Components | Great Product |
| Model Name | 771-S |
| Model Year | 2017 |
| Operation Mode | ON-OFF |
| Part Number | 771-S |
| Positions | 1-2-Both-Off |
| Terminal | Screw |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 7 x 4 inches |
| Weight | 1.102 pounds |
| Width | 7 inches |
| Technical Specifications | |
| International Protection Rating | IP00 |
| Wattage | 1.92E+4 |
