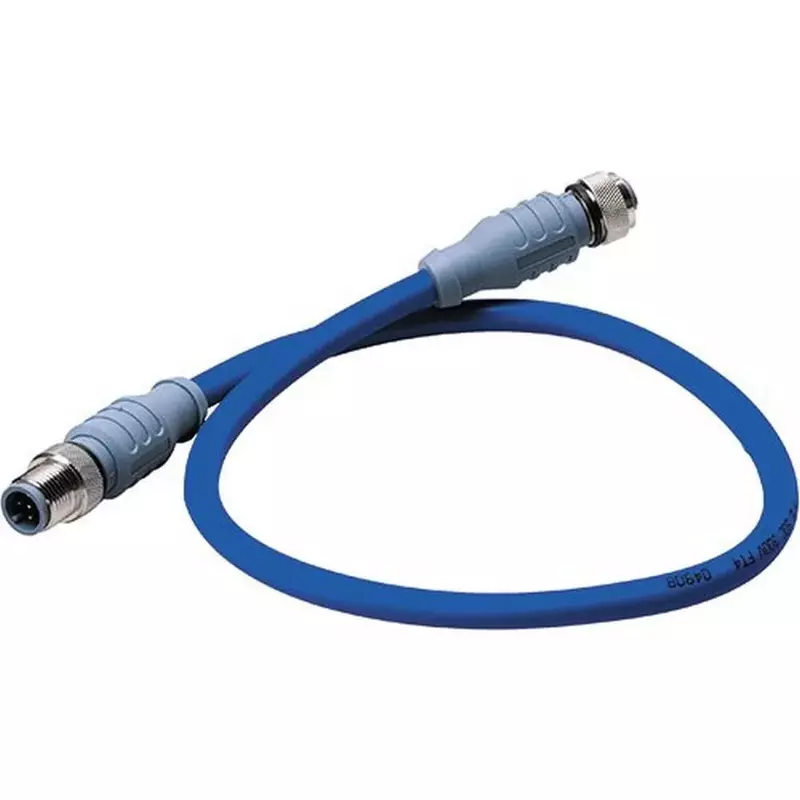

Maretron DM-DB1-DF-02.0 Mid Double Ended Cordset, 2 m, Blue
Customize
Maretron Mid Double-Ended Cordset - 2 M Blue Mechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59" Electrical Current Rating: 4.0 Amps Voltage Rating: 250 V Cable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: PE (data pair), PVC (power pair) Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair) ENVIRONMENTAL Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F) APPROVALS (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approved IEC: IEC 61162-3, Cable Length (Feet): 6'
- Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of micro cable
- Used with led-attachable connectors to build exact length cables at the job site
- Meets and exceeds NMEA 2000 specifications for the highest reliability
Specifications:
| Materials & Construction | |
| Color | Blue |
| Conductor Insulation Material | PE (data pair), PVC (power pair) |
| Connector Body Material | Thermoplastic PUR |
| Contact Plating | Brass/Gold |
| Coupling Nut Plating | Brass/Nickel |
| Outer Jacket Material | PVC |
| Product Details | |
| Connector Gender | Male-to-Female |
| Connector Outside Diameter | 0.59" |
| Included Components | DM-DB1-DF-02.0 |
| Input Current | 4 Amps |
| Number of Items | 1 |
| Voltage | 250 Volts |
| Sizing & Dimensions | |
| Cable Length (Feet) | 72 inches |
| Height | 2 inches |
| Item Dimensions (L x W x H) | 12 x 8 x 2 inches |
| Item Package Dimensions (L x W x H) | 10.67 x 7.68 x 1.69 inches |
| Length | 12 inches |
| Size | 78.74 inches |
| Weight | 7.76 ounces |
| Width | 8 inches |
| Technical Specifications | |
| Approvals | NMEA 2000 Approved; IEC 61162-3 |
| Protection Class | IEC IP68, NEMA 1,3,4,6P |
| Shielding | Foil (Overall), Foil (Power Pair), Foil (Data Pair) |
| Temperature Rating | -40 deg C to 80 deg C (-40 deg F to 176 deg F) |
